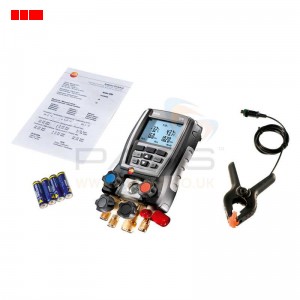

Testo 570-1 4 Way Digital Manifold

Ref: 167402

Purchasing the testo 570-1 digital manifold will ideally equip you to carry out quick, reliable measurements on refrigeration systems and heat pumps: carry out pressure, temperature, current and vacuum measurements as well as temperature-compensated tightness tests. Moreover, it calculates superheating and subcooling simultaneously.

  • 40 refrigerants are stored in the instrument
  • Calculation of superheating and subcooling possible in parallel
  • 999 hours of recording readings
  • Set includes a clamp temperature probe for measuring the surface temperature of pipes
  • Real-time recording and graphic presentation of measurement data: as an option you can purchase the „EasyKool“ software, which can be used to clearly
  • Protocol access and printout: the testo fast printer, which is available as an option, enables on-site printout of measurement data. You can also view
  • Pressure measurement with automatic temperature calculation: high and low pressure is measured via two temperature-compensated pressure sensors, which
  • Three connections for external temperature probes: connect up to three temperature probes (optional) in order to calculate superheating and subcooling
  • Integrated vacuum measurement: when evacuating refrigeration systems, you can use the 4-way manifold to carry out vacuum measurements. The integrated
  • Automatic heat pump mode: saves you from having to change refrigerant hoses
  • Other features such as temperature-compensated tightness testing and automatic ambient pressure compensation are included in the digital manifold

testo
Brand: testo

  • Price: £607.97(Excluding VAT at 20%)

Quantity:

Ordering is only available to Trade customers.

  • Description
  • Downloads
The testo 570-1 digital manifold is suitable for practical use, largely thanks to its robust 4-way valve block with 4 connections, 4 hose parkers and its inspection glass. Maintenance and servicing tasks on refrigeration systems and heat pumps are made easier due to the manageability of the instrument.
With its solid housing, the digital manifold is protected against impacts. A suspension hook on the back secures the instrument during the measurement. In addition, the manifold has a large, illuminated display, so you will have no problem reading off the readings, even in a dark environment.
Recommendation: if you would like to have a key accessory to hand, you can purchase the digital manifold testo 570-2 Set. This manifold set contains a second clamp temperature probe, the „EasyKool“ software, a USB cable, a mains unit and a transport case.

Downloads for Testo 570-1 4 Way Digital Manifold:
