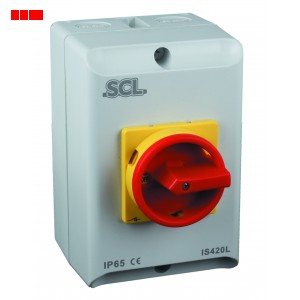

20A 4 Pole Isolator Switch

Ref: 160806

This enclosed isolator is CE marked and suitable for disconnecting the power supply to outdoor air source heat pumps and air conditioning units. This isolator is weatherproof to IP65, easy to install, and conform to EC 60947-3. They have a lockable off position and inter lockable lever which can be removed only in the off position. Earth and neutral terminals included.

  • Weatherproof to IP65
  • Easy installation
  • M20/25 Knockouts up to 63A
  • Handle lockable in off position
  • Earth and neutral terminals included
  • Interlocked cover – removable in off position only
  • Captive, retained cover screws
  • Conforms to IEC 60947-3
  • No. of Poles : 4
  • Amps AC21 : 20 Amp
  • AC23 A 240VA : 5.5 kW
  • AC23 A 400VA : 3.7 kW
  • Price: (4 or fewer items) £19.32(Excluding VAT at 20%)
  • Price: (5 to 9 items) £15.46(Excluding VAT at 20%)
  • Price: (10 or more items) £14.49(Excluding VAT at 20%)

Quantity:

Ordering is only available to Trade customers.

  • Specification
  • Downloads
  • No. of Poles 4
  • Amps AC21 20 Amp
  • AC23 A 240VA 5.5 kW
  • AC23 A 400VA 3.7 kW
  • Solid Cable Capacity 1-16mm²
  • Stranded Cable Capacity 0.75-10mm²
  • Depth 135mm
  • Height 175 mm
  • Width 114 mm
  • Depth 135 mm
  • Weight 0 kg
