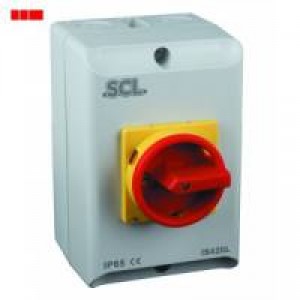

20A-S 4 Pole Isolator Switch

Ref: 33508

This enclosed isolator is CE marked and suitable for disconnecting the power supply to outdoor air source heat pumps and air conditioning units. This isolator is weatherproof to IP65, easy to install, and conform to EC 60947-3. They have a lockable off position and inter lockable lever which can be removed only in the off position. Earth and neutral terminals included.

  • Weatherproof to IP65
  • Easy installation
  • M20/25 Knockouts up to 63A
  • Handle lockable in off position
  • Earth and neutral terminals included
  • Interlocked cover removable in off position only
  • Captive, retained cover screws
  • Conforms to IEC 60947-3
  • No. of Poles : 4
  • Amps AC21 : 20 Amp
  • AC23 A 240VA : 5.5 kW
  • AC23 A 400VA : 3.7 kW

Pump House
Brand: Pump House

  • Price: 17.50(Excluding VAT at 20%)

Quantity:

Ordering is only available to Trade customers.

  • Specification
  • No. of Poles 4
  • Amps AC21 20 Amp
  • AC23 A 240VA 5.5 kW
  • AC23 A 400VA 3.7 kW
  • Solid Cable Capacity 1-16mm
  • Stranded Cable Capacity 0.75-10mm
  • Depth 120mm
  • Height 125 mm
  • Width 100 mm
  • Depth 120 mm
  • Weight 0 kg
